• EPOXY INSULATORS 11kv/22kv/33kv

    INSULATORS

    These products are available in varied specification and can be designed as well manufactured according to the specifications provided by the clients.

  • EPOXY

    DRIVE ROD

    Following types of Drive Pod Insulators are manufacured in our company.
    1. Ø50 x 240mm
    2. Ø60 x 120mm
    3. Ø61 x 210mm

  • EPOXY

    MONO BLOCK

    Mono Block manufactured in our company. 2.5sq.mm cable - range 1 to 23 combination
    4sq.mm cable - range 1 to 16 combination

  • EPOXY

    DRIVE INSULATOR

Products

Epoxy Cast Products

Post insulators are made of epoxy resin with threaded inserts. Suitable for indoor-outdoor application. The casting methods we use guarantee products with excellent electrical and mechanical properties and constant quality. These insulators have been specifically designed so as to withstand the demands made upon them by extremes in climatic conditions and weather fluctuations. The post insulator flanges are sharp and narrow which results in shape and creepage distance most suitable for countering problems of pollution. The insulators may be cleaned using water, spirit, petrol or toluene. Even strong arcs fail to break the cast resin post insulators. Scars in the surface caused by flash-over can be easily made good by smoothing and cleaning the marks and rubbing a thin layer of silicone paste into the surface.

This treatment does not decrease the flashover strength of the insulator. The cast resin post insulators also have a high resistance to chemicals. The insulators can be used in areas where the atmosphere includes large quantities of corrosive gasses such as sulphuric and .compounds. Indoor post insulators can be installed in any chosen position. The operating position of outdoor post insulators can vary from vertical to horizontal. Aluminum compound bus bar clamps are used for fixing bus bars to post insulators. The dimensions and position of the bus bar stack and the type of insulator used, determine the type of bus bar clamp. The dimensions of the bus bars have been calculated so that if the height of the bus bar stack does not exceed the width of the bus bars they will withstand greater mechanical strain than the corresponding support insulators.


SP Industries Products
  • Epoxy Cast Support Insulator ( 11 kV- Ø61 x 130 mm & Ø77 x 130mm )
  • Epoxy Cast Support Insulator ( 22 kV- Ø85 x 210 mm & Ø85 x 230mm )
  • Epoxy Cast Support Insulator ( 33 kV- Ø100 x 300mm)
  • L V Bushing
  • Epoxy Cast Mono Block
  • Epoxy Drive Rod Insulators

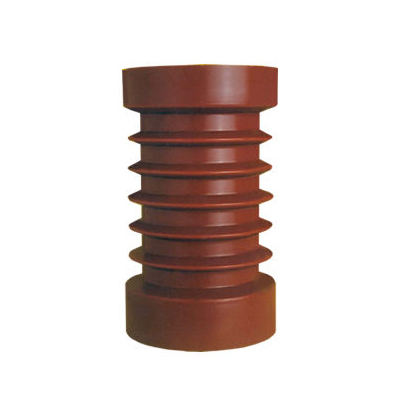

11kV Epoxy Cast Insulators

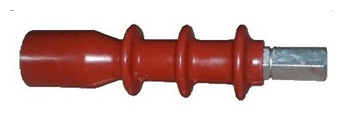

Epoxy Drive Rod

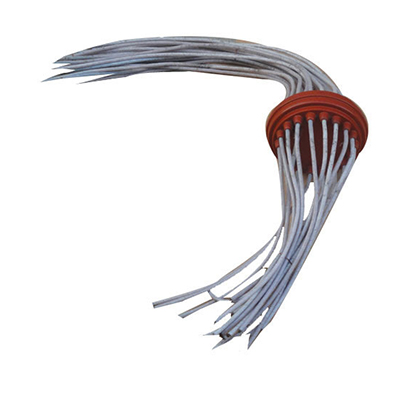

Epoxy Cast Mono Block

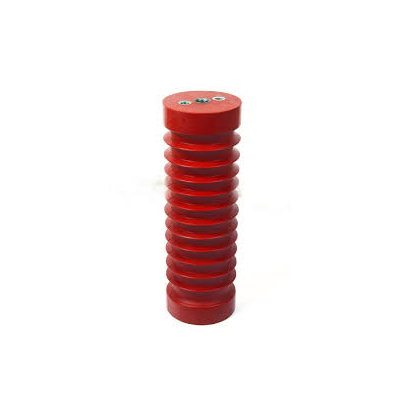

33kV Epoxy Cast Insulators
